Taylor Made grey tempered safety glass for scratch resistance and clarity. New security locking handles with lock-in vent position. Positive lock riser arms for easy open/easy close. Pre-drilled mounting holes. Designed as a replacement for all Taylor Made and similar style hatches.
Quick Facts
| Stock # | Description | Frame Size | Maximum Hole | Shipping Weight | Screen |
| 50101 | 10" x 10" | 12-3/8" x 12-3/8" | 9-5/8" x 9-5/8" | 8 lbs. | 50102 |
| 50103 | 12" x 12" | 14-3/4" x 14-3/4" | 12" x 12" | 9 lbs | 50104 |
| 50105 | 13" x 18" | 15-5/8" x 20-7/16" | 12-7/8" x 17-11/16" | 11 lbs. | 50106 |
| 50107 | 17" x 17" | 19-7/16" x 19-7/16" | 16-11/16" x 16-11/16" | 17 lbs. | 50108 |
| 50109 | 18" x 18" | 20-3/4" x 20-3/4" | 18" | 18 lbs. | 50110 |
| 50111 | 20" x 20" | 22-1/2" x 22-1/2" | 19-3/4" x 19-3/4" | 19 lbs. | 50112 |
| Stock # | Description |
| 1732 | 10" x 10" Hatch Arm |
| 1733 | 12" x 12" or 13" x 18" Hatch Arm |
| 1734 | 17" x 17" Hatch Arm |
| 1735 | 18" x 18" Hatch Arm |
| 1736 | 20" x 20" Hatch Arm" |
| Stock # | Description | Quantity |

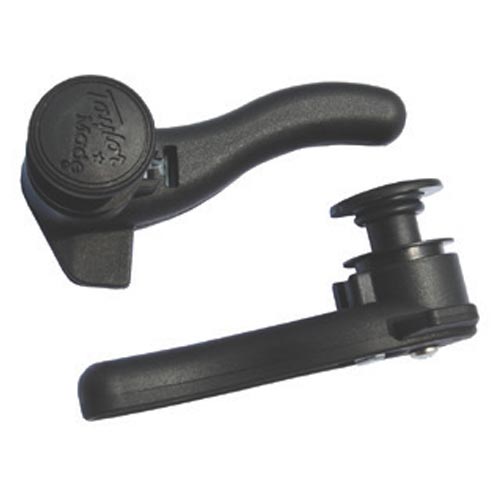

| (A) 1731 | (1994 - present) Handle with post, "O" rings, lock, screw | 1 |
| (B) 1724 | Hatch riser arm for 10" x 10" hatch | 1 |
| (C) 1723 | Hatch riser arm for 12" x 12" hatch | 1 |
| (C) 1728 | Hatch riser arm for 13" x 13" hatch | 1 |
| (D) 1729 | Hatch riser arm for 17" x 17" hatch | 1 |
| (D) 1730 | Hatch riser arm for 18" x 18" hatch | 1 |
| (D) 1722 | Hatch riser arm for 20" x 20" hatch | 1 |
| (E) 1721 | Hatch riser arm locking knob | 1 |
| (F) 1720 | (1990 - 1993) Handle with post, "O" rings, screw | 1 |
| (G) 1725 | "D" sponge gasket | 7" length |
| (H) 1726 | Installation foam 1/4" x 1/2" | 8" length |
Items A & E are for model years 1994-Present only. Item G is for model years 1990-1993 only. All hatch riser arms and handles are universal and can be used on the left or right side
